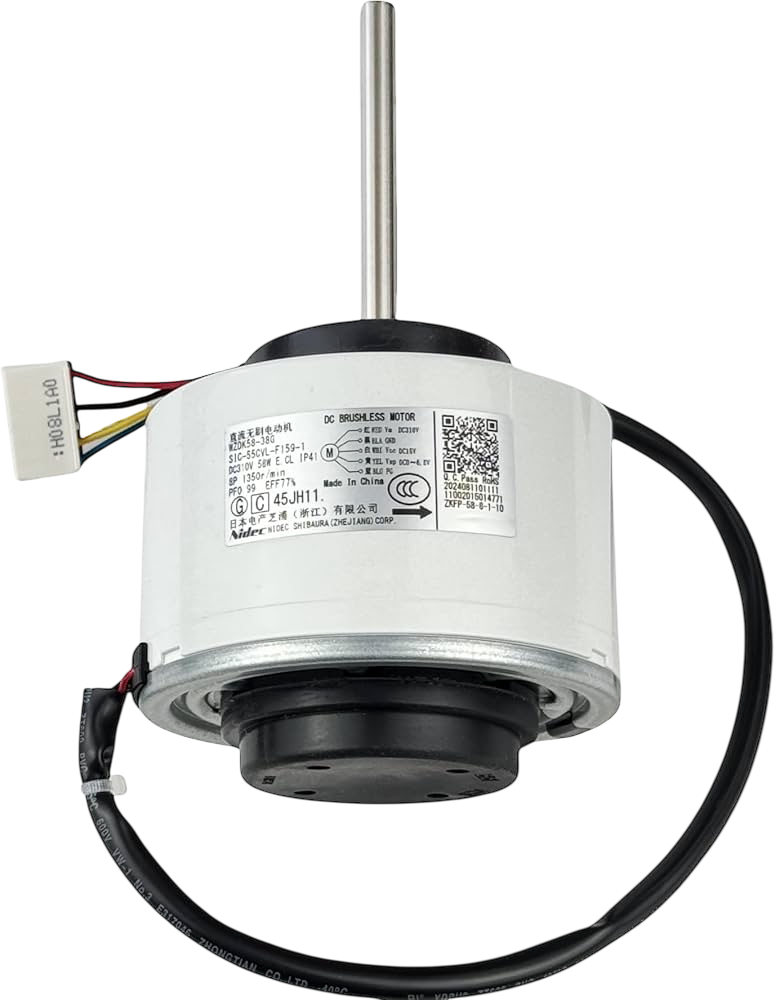

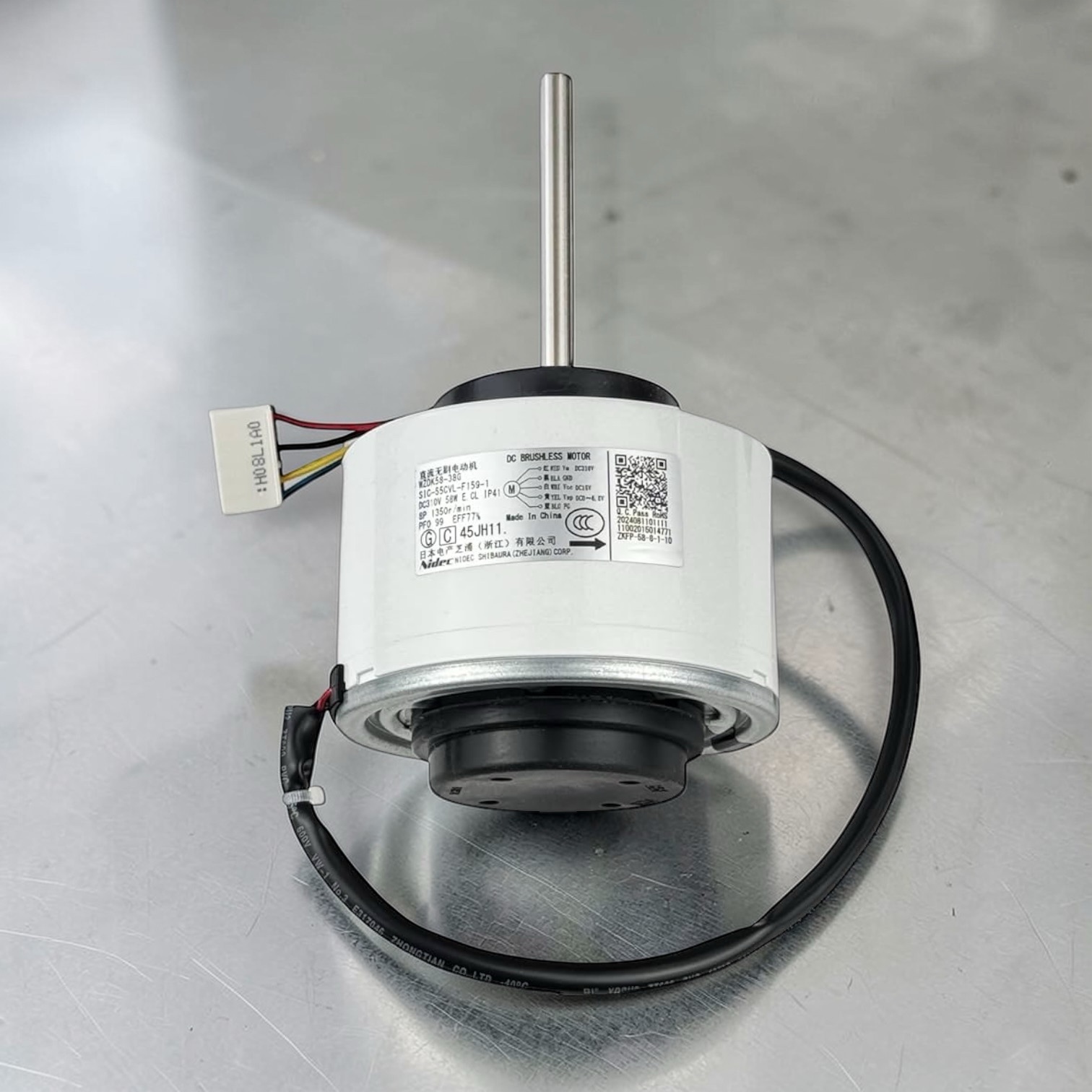

DC Brushless Fan Motor – Model WZDK58-38G

$85.00

DC brushless fan motor for compatible inverter AC systems: DC 310 V, 1350 RPM, IP41 and Class E insulation. Check dimensions, connector and control-board compatibility before ordering.


Replacement fan motor for compatible inverter air-conditioning systems, with electronic speed control and a multi-pin connector.

Specifications and dimensions

Parameter Value / condition
Model / type WZDK58-38G / DC brushless fan motor
Rated voltage / speed DC 310 V / 1350 RPM
Protection / insulation IP41 / Class E

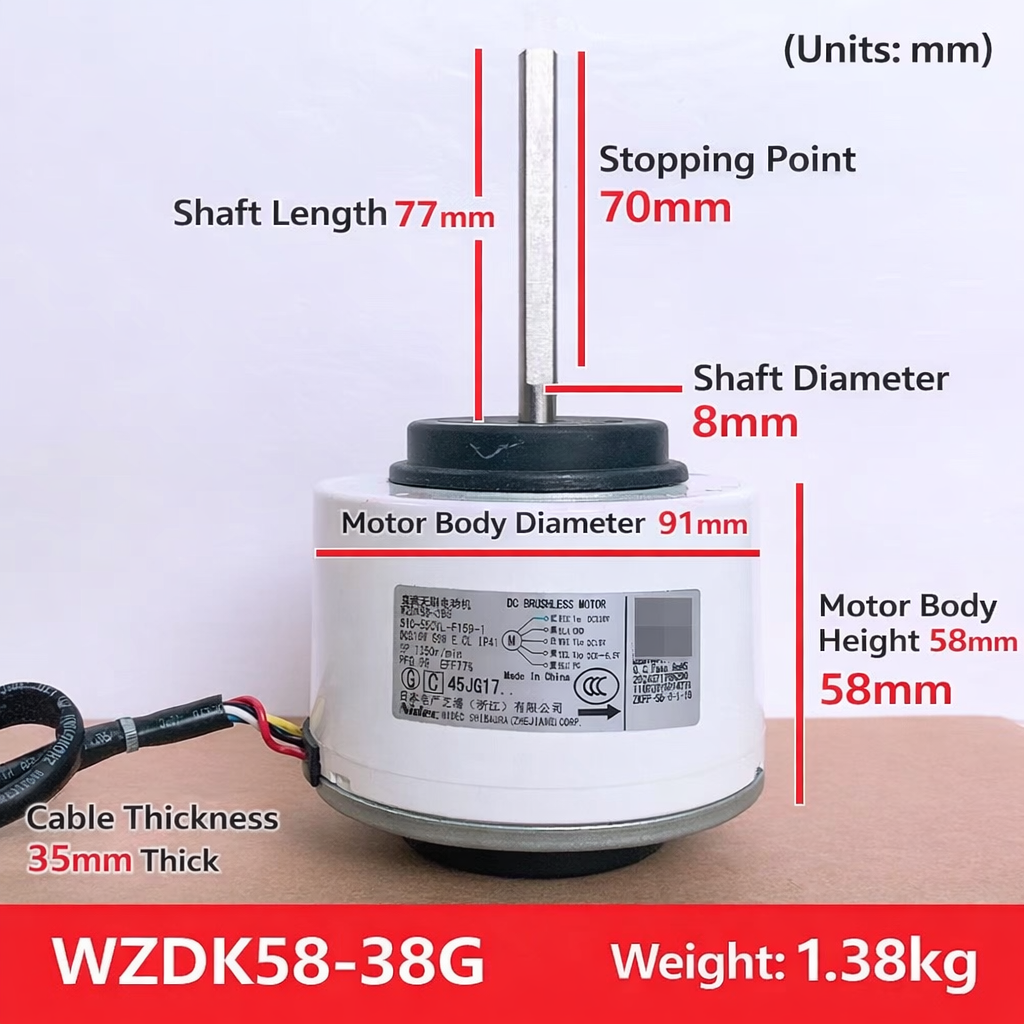

Shaft length / diameter 77 mm / 8 mm
Stopping-point length 70 mm
Motor-body diameter / height 91 mm / 58 mm
Cable length / net weight 35 cm / 1.38 kg
Manufacturer / origin Nidec Shibaura (Zhejiang) Corporation / Made in China

Compatibility

Match the original model, voltage, speed, dimensions, shaft, mounting, rotation, connector, pinout and control-board requirements. Check the 70 mm stopping-point dimension against the original part; do not assume fit from the model name or brand alone.

Safety

For qualified HVAC technicians. Isolate power and verify that stored energy has discharged before replacement. Never connect or disconnect the motor while energized.
