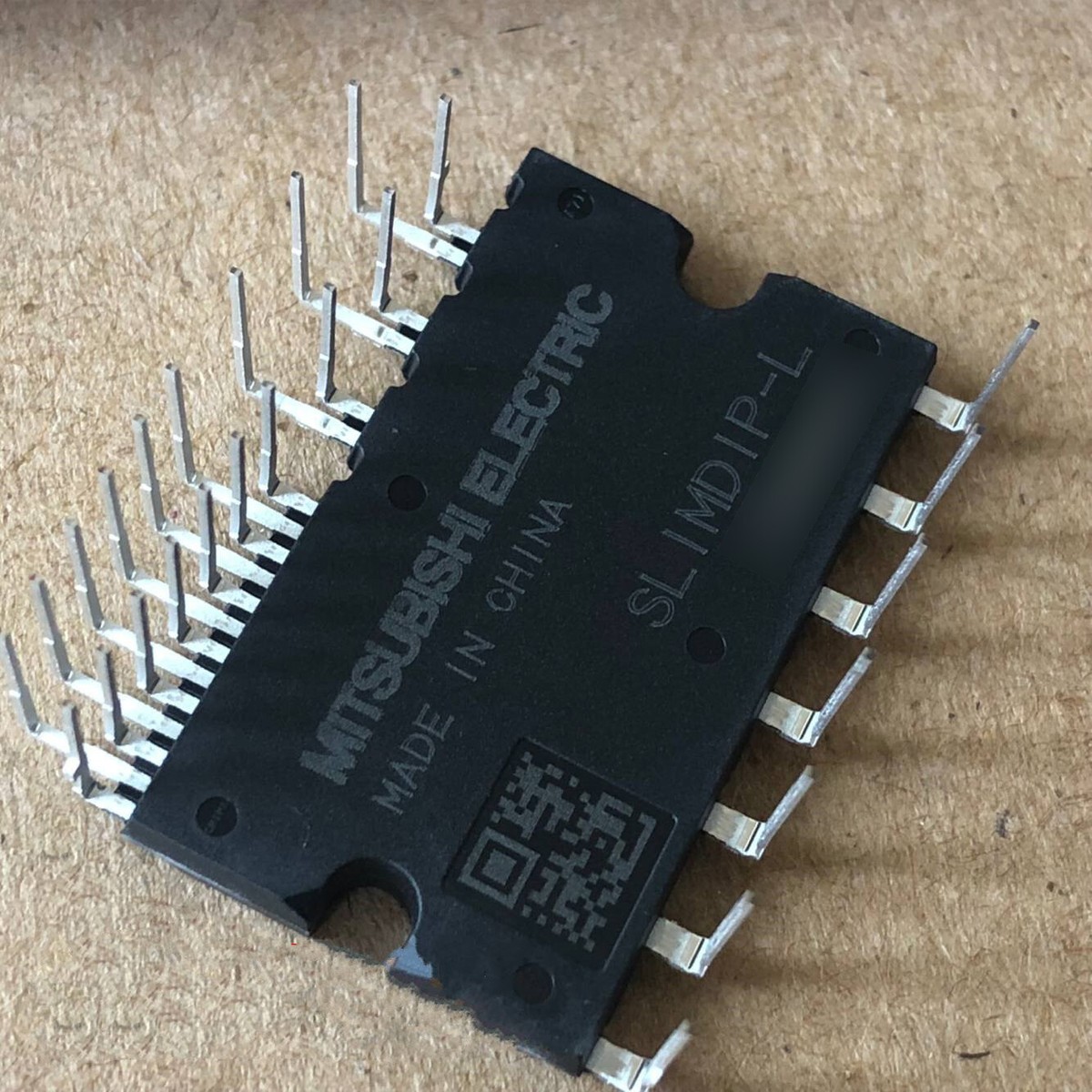

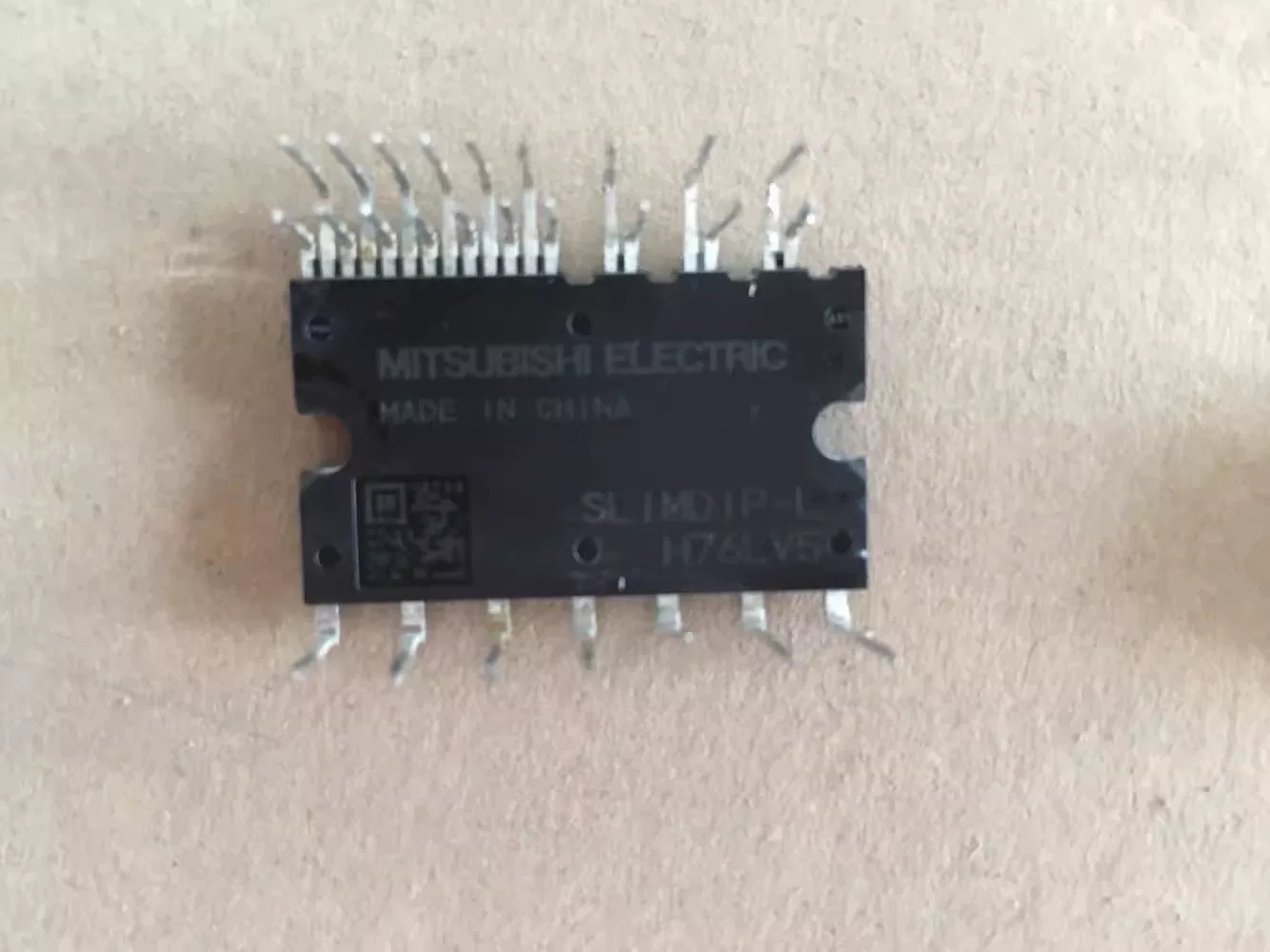

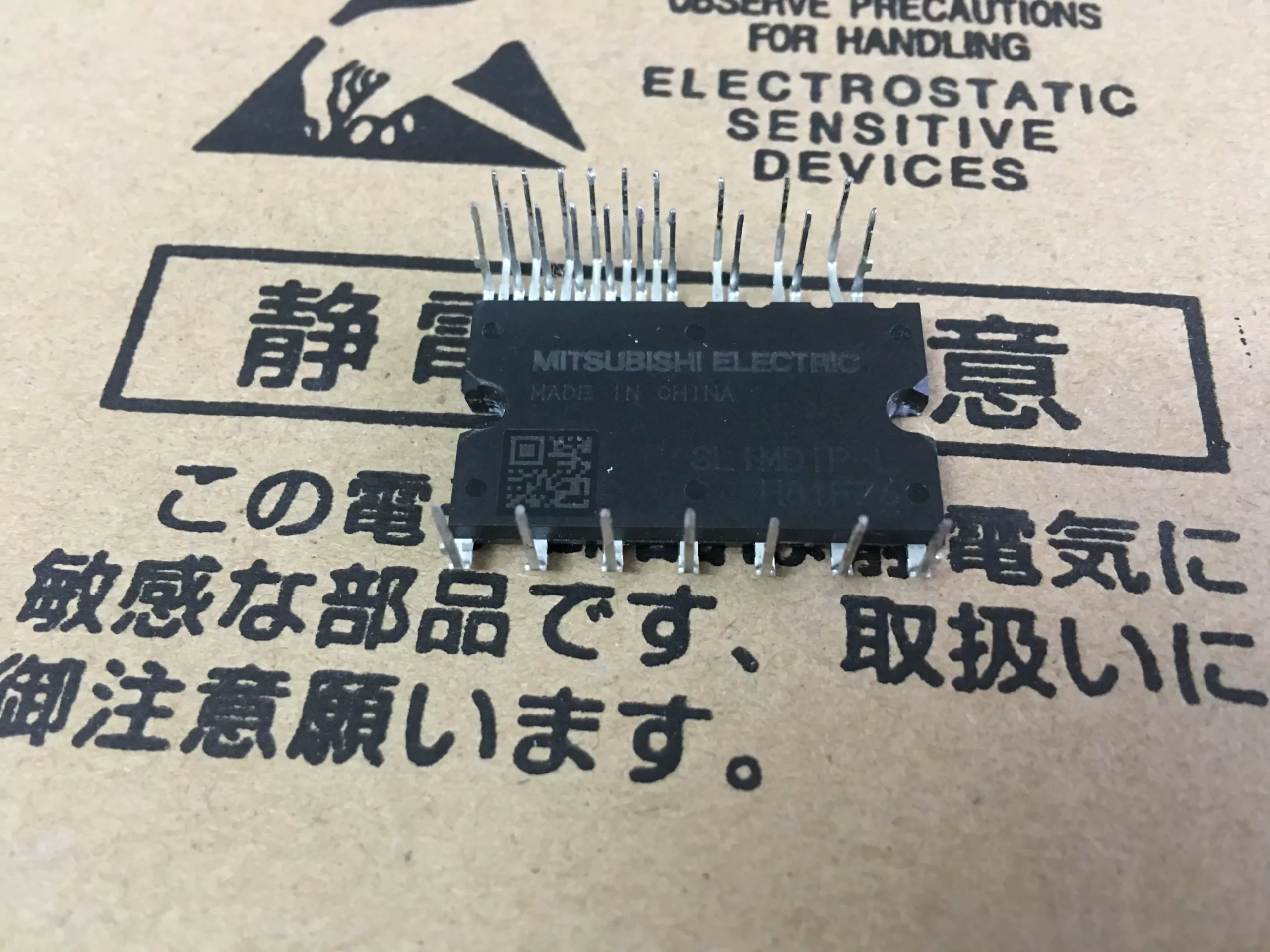

SLIMDIP-L Intelligent Power Module (IPM), Transfer Molded Insulated Type

$20.00

Compact inverter IPM in a transfer-molded insulated package. Check the maximum-rating conditions and board compatibility before use; peak current is not continuous current.


SKU: T_613514346834_71368361 Categories: , ,

Intelligent power module with an integrated IGBT power stage and protection features in a transfer-molded insulated package, for compatible inverter motor-drive systems.

Maximum ratings

Maximum ratings, not nominal operating targets. Ta = 25°C unless otherwise specified. The 30 A value is a peak rating under the stated pulse and case-temperature conditions, not a continuous-current rating.

Parameter Value / condition
Supply voltage (Vcc) 450 V; applied between P and NU/NV/NW
Surge supply voltage (Vcc surge) 500 V; applied between P and NU/NV/NW
Collector-emitter voltage (VCES) 600 V
IGBT collector current (±IC) 15 A at Tc = 25°C
IGBT peak collector current (±ICP) 30 A at Tc = 25°C; pulse width < 1 ms
Junction temperature (Tj) −30°C to +150°C

Application and compatibility

For compatible inverter AC boards, BLDC/PMSM drives and compact motor-control systems. Verify the exact module reference, pinout, electrical operating conditions and thermal design against the manufacturer’s datasheet before replacement.

Safety

Professional installation only. Isolate power and verify that stored energy has discharged before handling the board. Integrated protection does not replace the equipment’s electrical safety measures.
